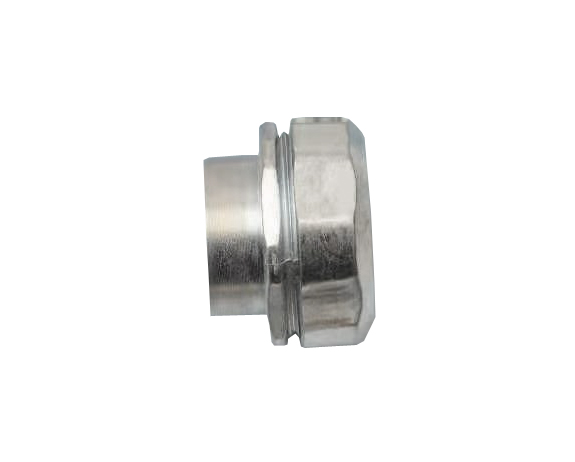

1、WUG防水型混合连接器与KV防水型、KVZ阻燃型可挠金属电气导管用螺纹方式连接，另一端与有螺纹钢管连接。
2、材质为压铸锌，表面镀锌或镀铬，其余材质为橡胶等。
|
规格 |
电气导管规格 |
l1
mm |
l2
mm |
l3
mm |
ØA
mm |
ØB
mm |
Ød
mm |
ØS
mm |
管螺纹 |
|
WUG-17 |
KV |
17" |
19 |
24.5 |
27 |
37 |
34.0 |
25.3 |
20 |
G3/4" |
|
WUG-24 |
24" |
22 |
25.5 |
30 |
46 |
42.0 |
31.3 |
25 |
G1" |
|
WUG-30 |
30" |
25 |
29.0 |
33 |
54 |
50.0 |
28.4 |
32 |
G11/4" |
|
WUG-38 |
38" |
28 |
33.0 |
37 |
64 |
60.0 |
47.2 |
40 |
G11/2" |
|
WUG-50 |
50" |
28 |
34.5 |
38 |
78 |
73.5 |
53.5 |
50 |
G2" |
|
WUG-63 |
63" |
34 |
37.0 |
44 |
92 |
90.0 |
81.0 |
65 |
G21/2" |
|
WUG-76 |
76" |
36 |
42.0 |
48 |
108 |
104.0 |
81.0 |
65 |
G21/2" |
|
WUG-83 |
83" |
40 |
42.0 |
49 |
121.7 |
115.8 |
95.8 |
80 |
G3" |
|
WUG-101 |
101" |
42 |
52.0 |
57 |
145.0 |
150.0 |
121.0 |
100 |
G4" |
|
WUG-130 |
130" |
44 |
52.0 |
59 |
168.3 |
168.0 |
146.4 |
125.0 |
G5" |
